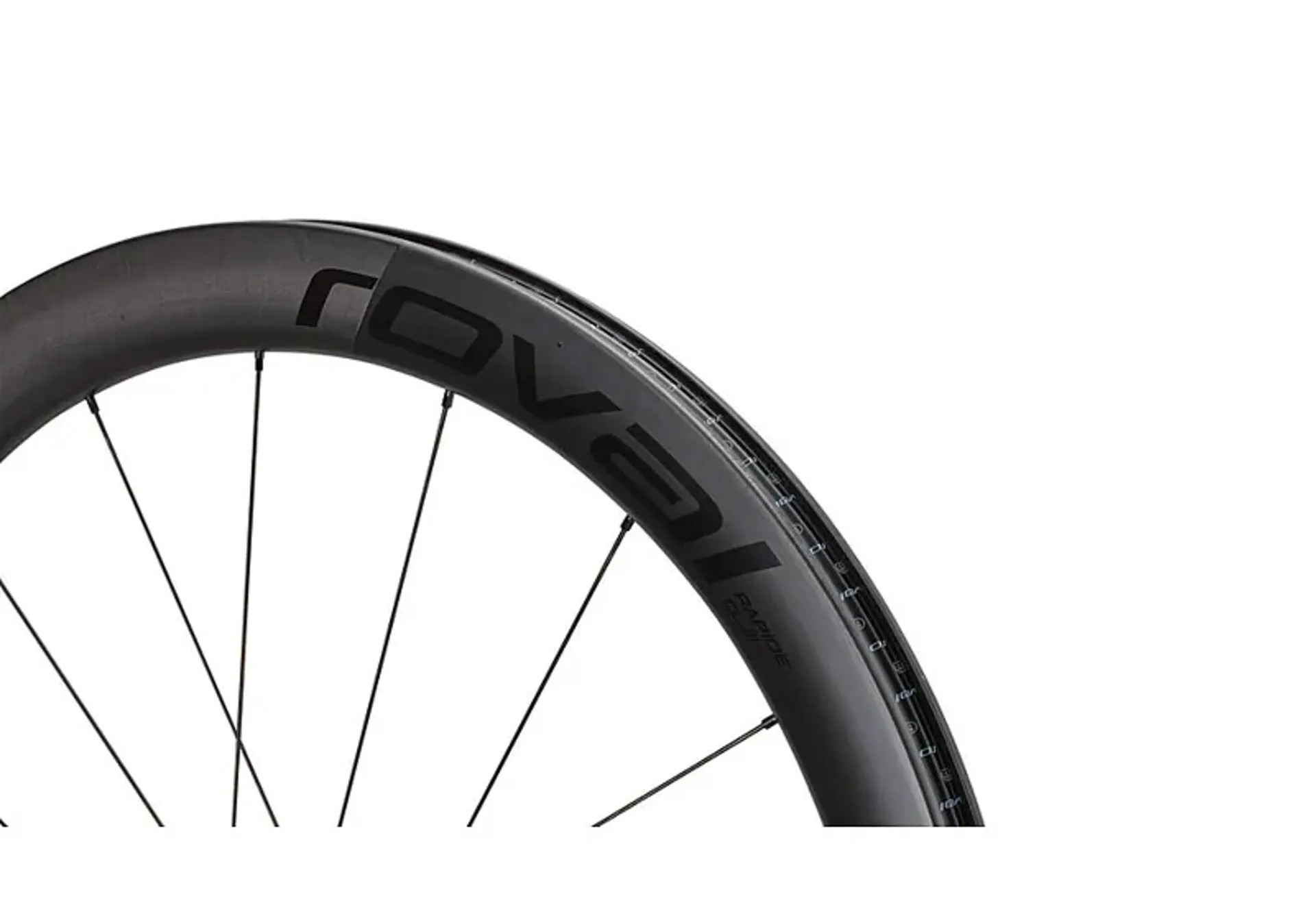

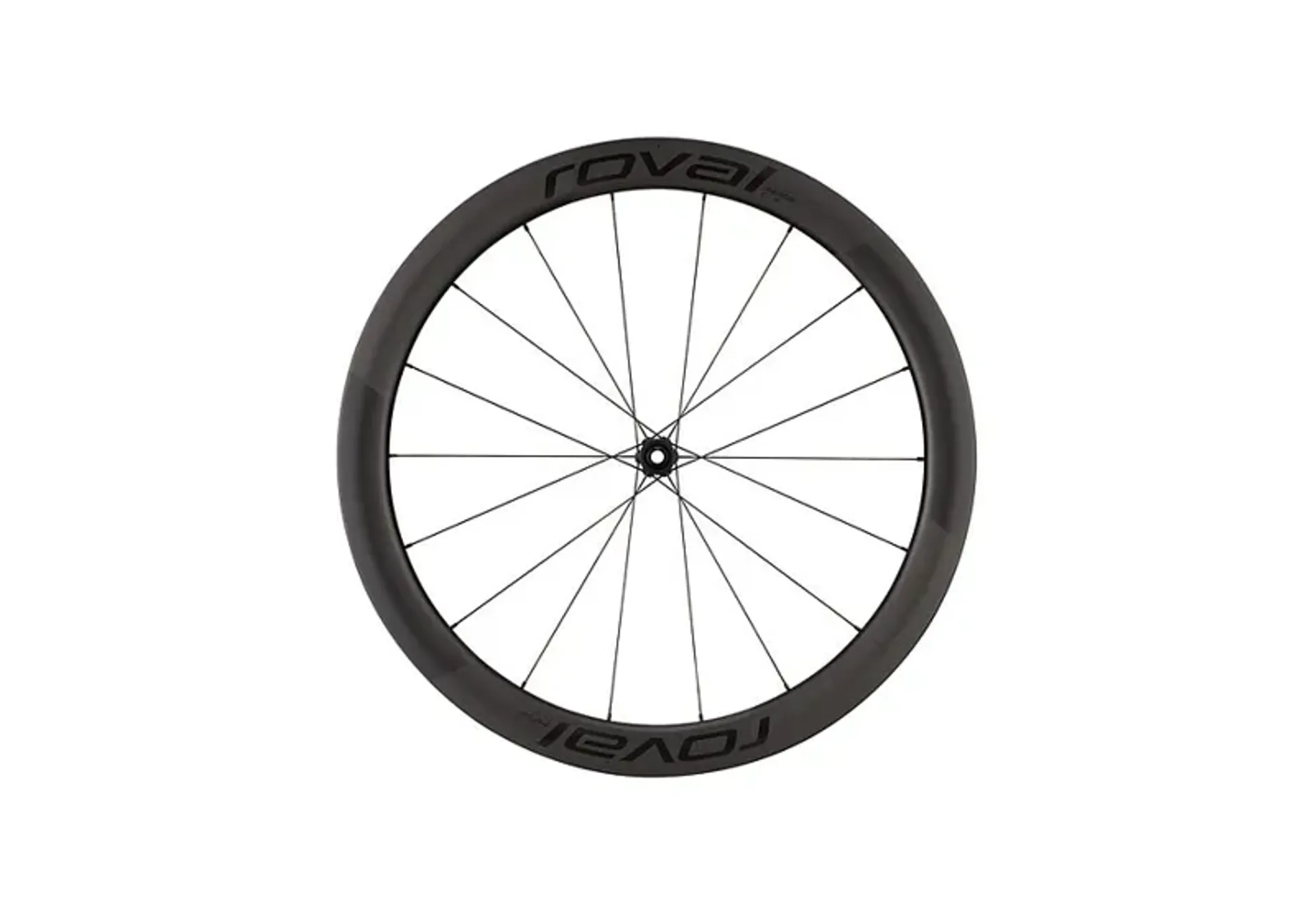

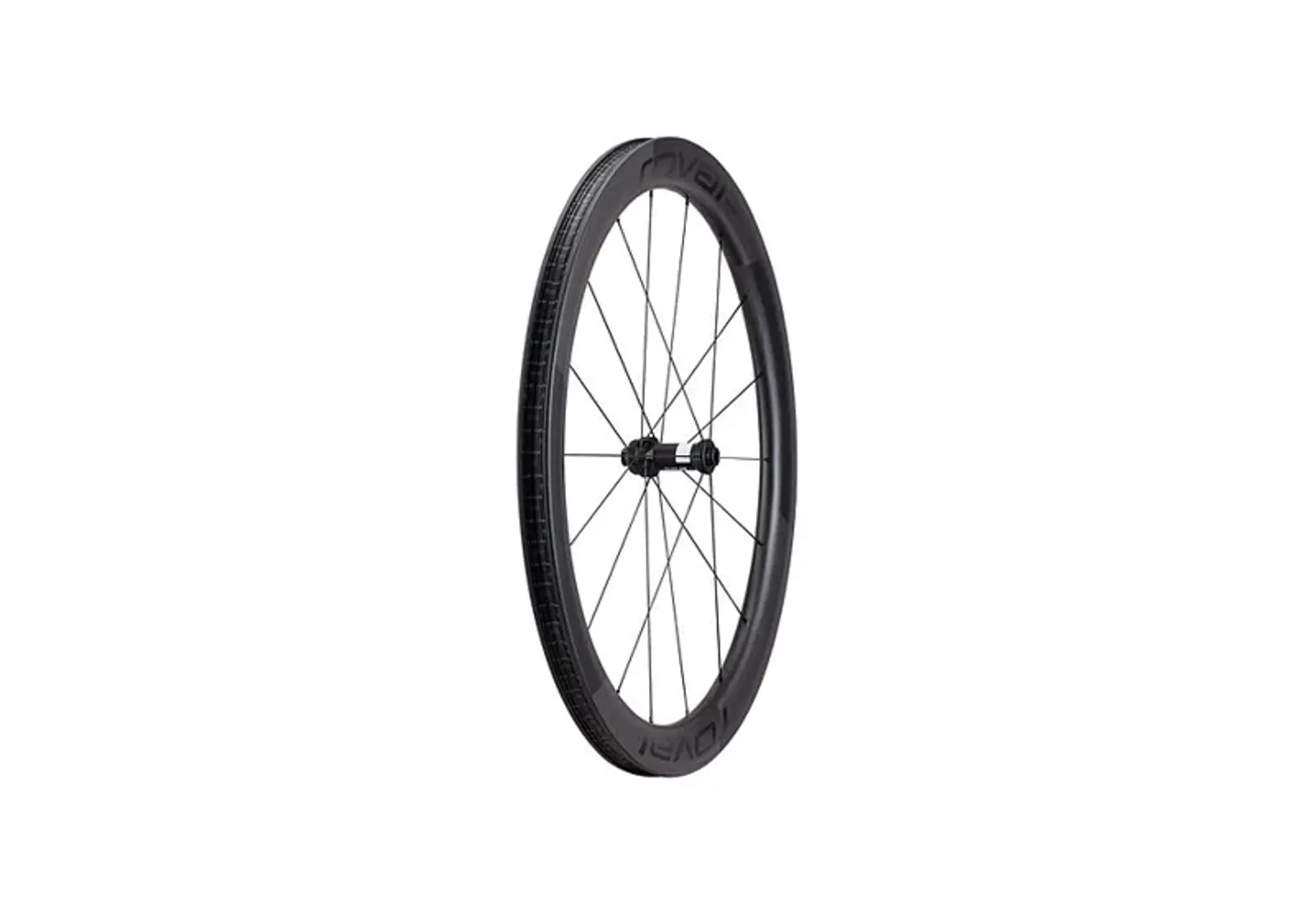

Front Rim
Rapide CLX II Carbon Clincher, 700c (CR2472)
-
Front Rim Dimensions
Depth: 51mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (5.5)mm
-
Rear Rim
Rapide CL III Carbon Clincher, 700c (CR2473)
-
Rear Rim Dimensions
Depth: 48mm, External Width (at widest point): 31.3mm, Internal Width: 21mm, Bead Hook Width: (4.1)mm
-
Rim Construction
Carbon Clincher Hooked
-
Wheel Size / ETRTO
622 × 21 (700c)
-
Hole Count
Front: 18H, Rear: 24H
-
Tubeless Compatibility
Yes
-
Insert Compatibility
Yes
-
Brake Compatibility
Disk (Centerlock)
-
Valve Stem Length
Roval Tubeless Vlave, Alloy 70mm
-

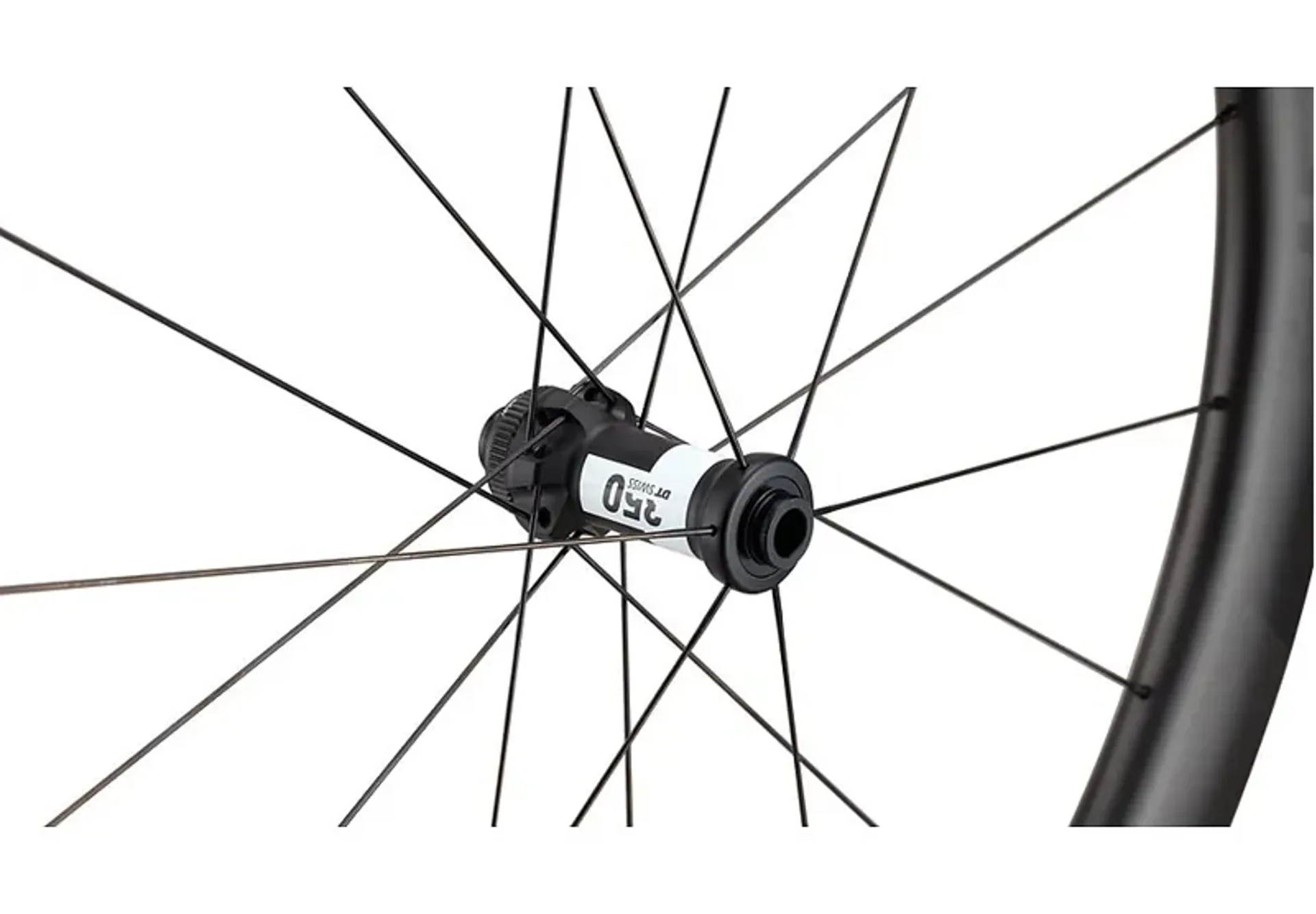

Front Hub
DT Swiss 350 Straight Pull, Center Lock, 12x100mm
-
Rear Hub
DT Swiss 350 Straight Pull, Center Lock, 12x142mm
-
Front Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
-
Rear Freehub Body
DT Swiss Ratchet (36T): Shim. RD. 11SP HG freehub
-
Front Spokes
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 18qty, (DS: 258mm, NDS: 270mm)
-
Rear Spokes
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 268mm, NDS: 271mm)
-
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
-
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
-
Nipples
DT Swiss Hex Prolock Al 2.0x14mm
-
Approved Tire Widths
24mm-38mm
-
Max Pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
-
Tire Type
Clincher Tubeless and Clincher Tube Type
-
Tubeless Tape Width
25mm
-
Design Tire
RapidAir TLR, 28mm
-
Front Weight
716g (with valves and tape)
-
Rear Weight
839g (with valves and tape)
-

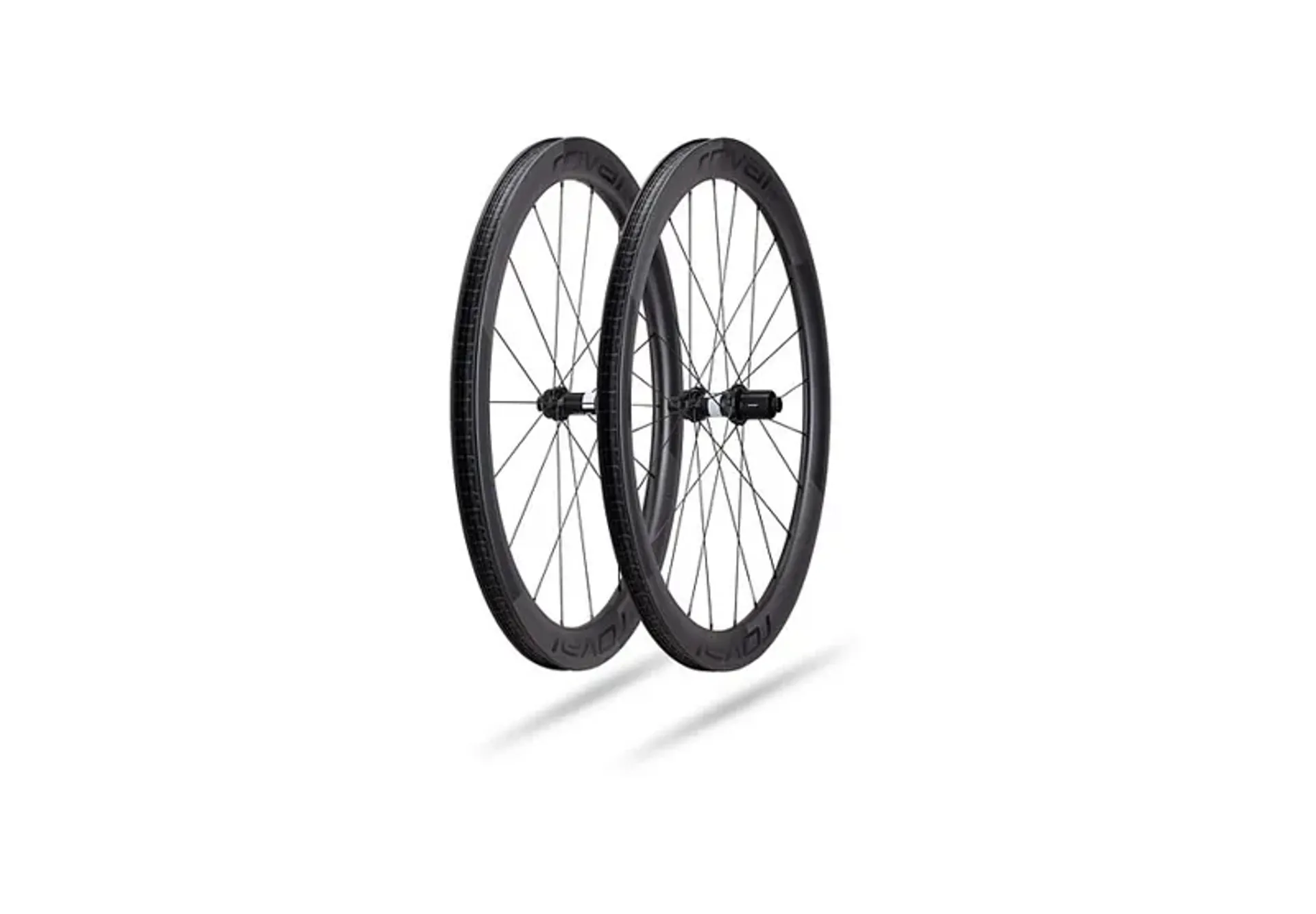

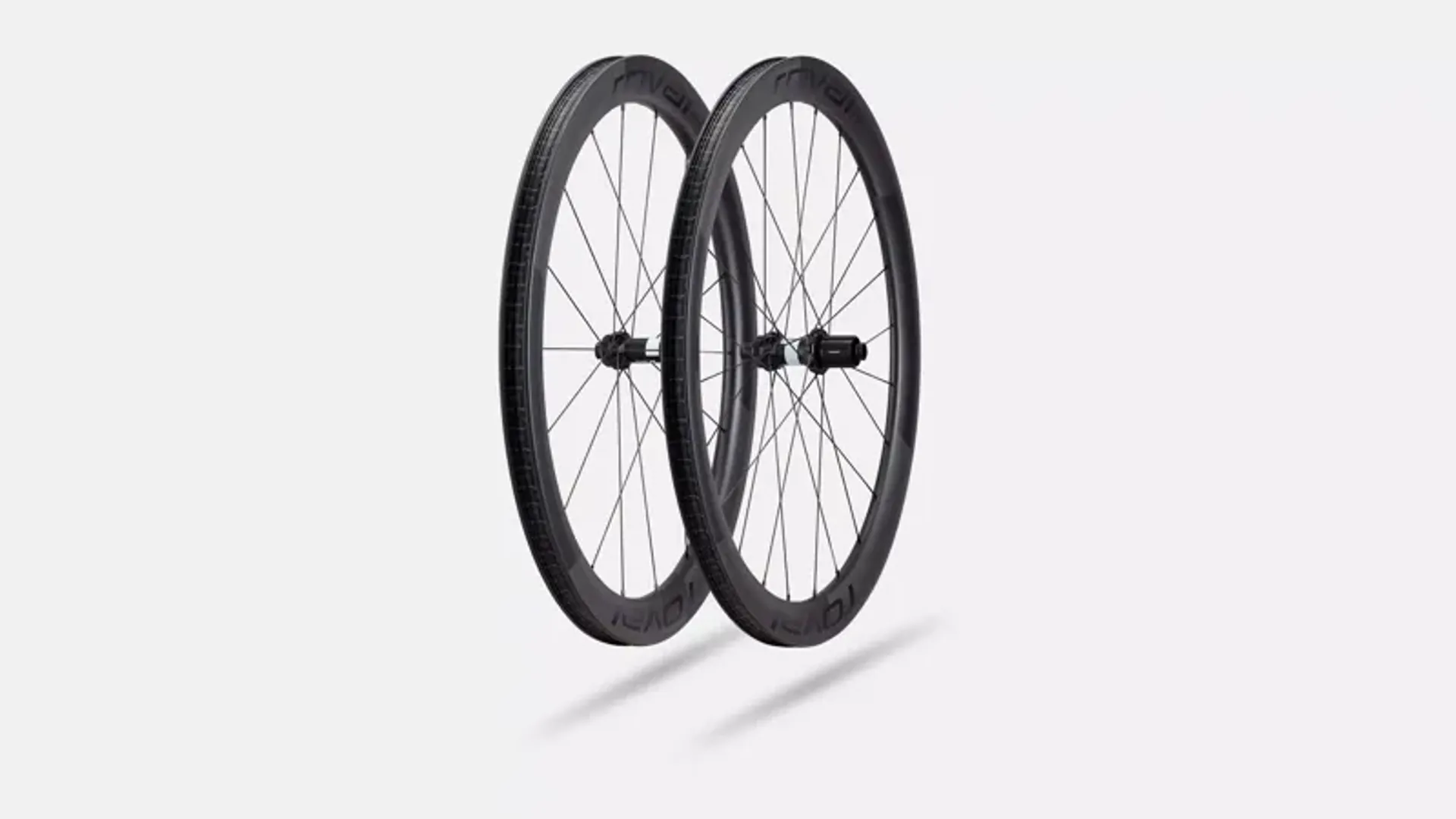

Wheelset Weight
1555g (with valves and tape)
-
Extras
4 Extra Spokes and Nipples
-
E-bike Approved
Yes, SL style systems or max 350W
-
Certifications
ISO 5775-2, UCI Approved
-
Weight Limit
275 lbs. / 125 kg.
-
Assembly Method
Hand Built
