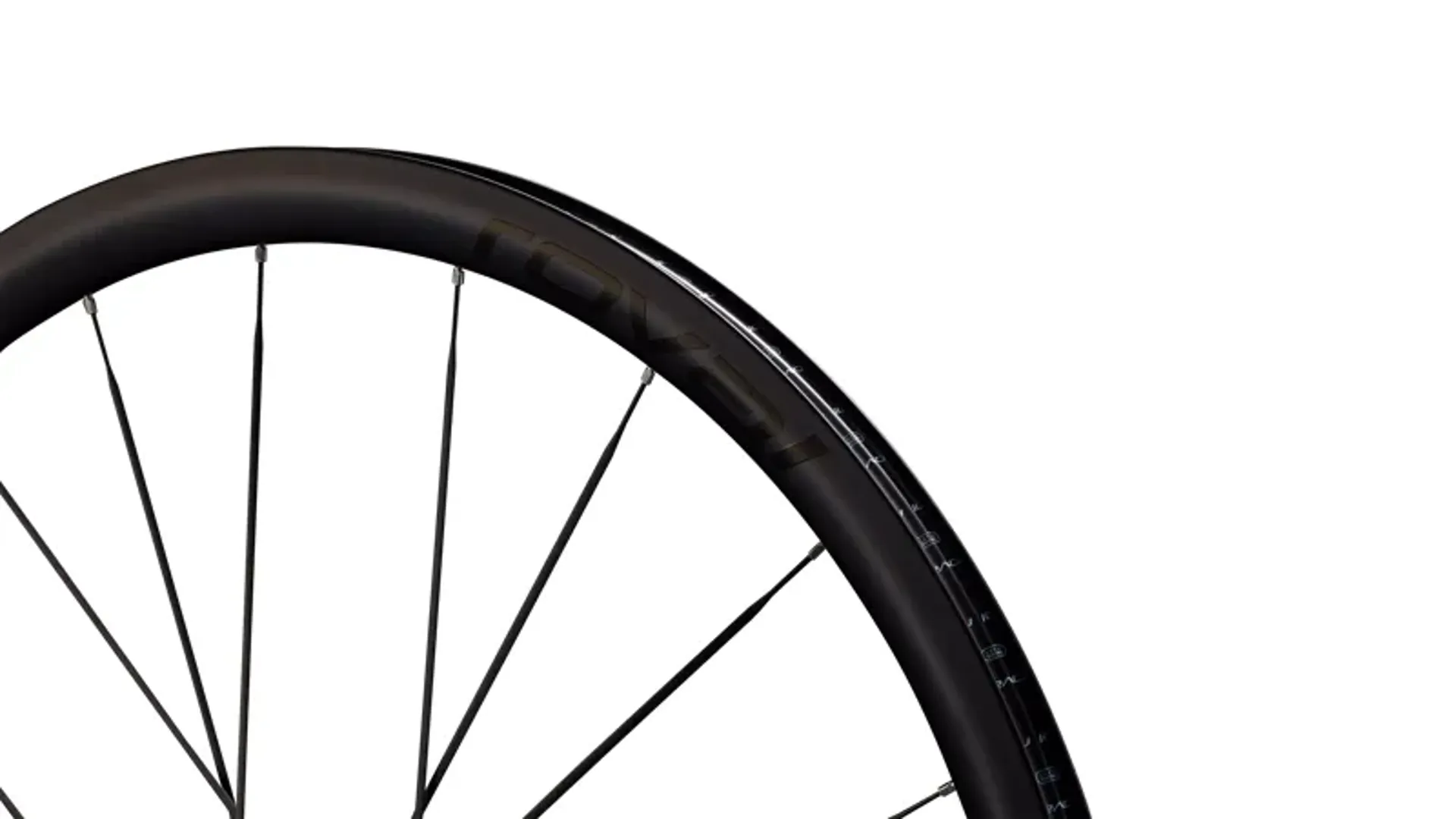

Front rim

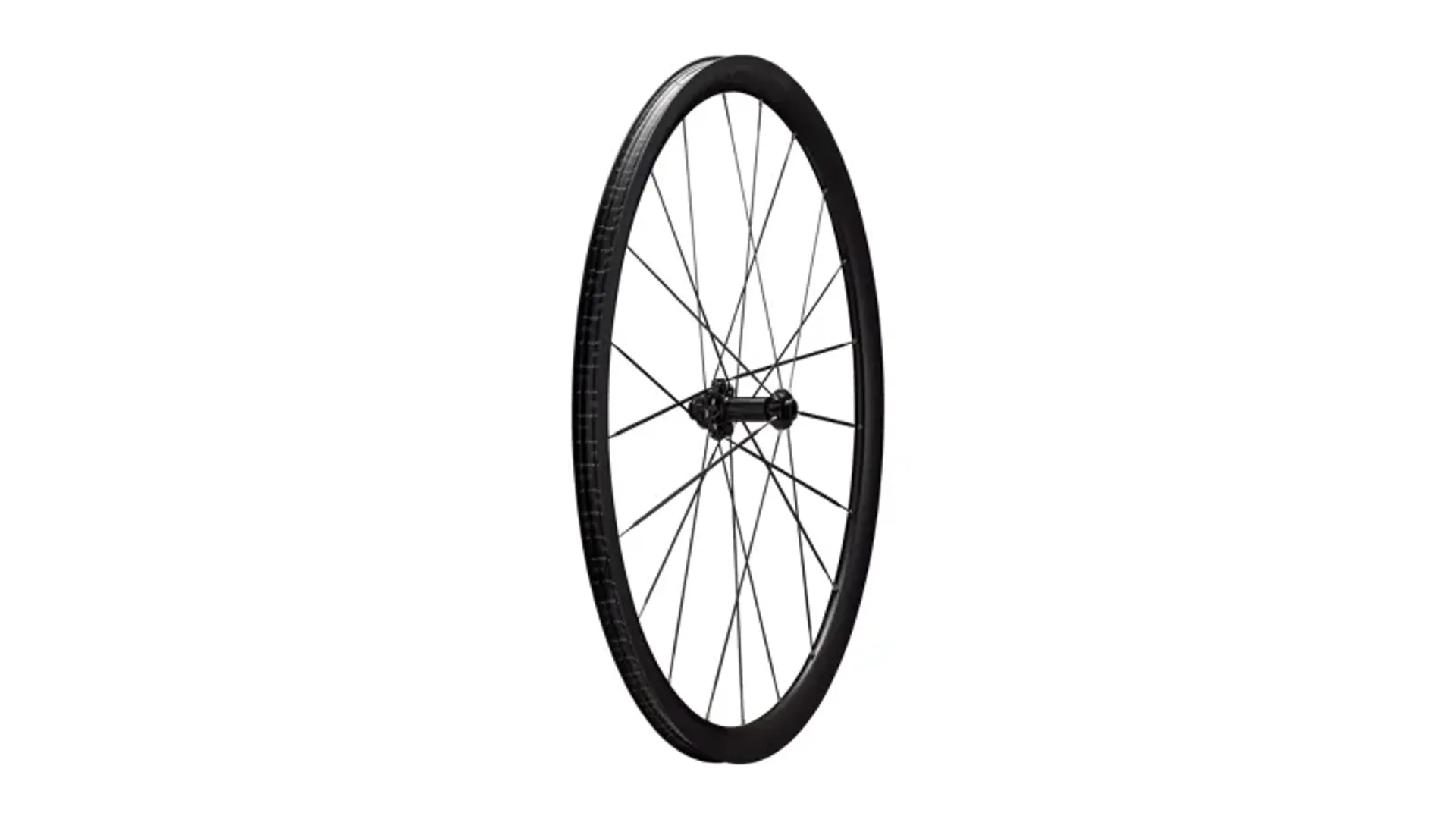

Alpinist CLX III Carbon Clincher, 700c (CR2474)
-
Front rim dimensions
Depth: 33mm, External width (at widest point): 26.5mm, Internal width: 21mm, Bead hook width: 2.75mm
-
Rear rim
Alpinist CLX III Carbon Clincher, 700c (CR2475)
-
Rear rim dimensions
Depth: 33mm, External width (at widest point): 26.5mm, Internal width: 21mm, Bead hook width: 2.75mm
-

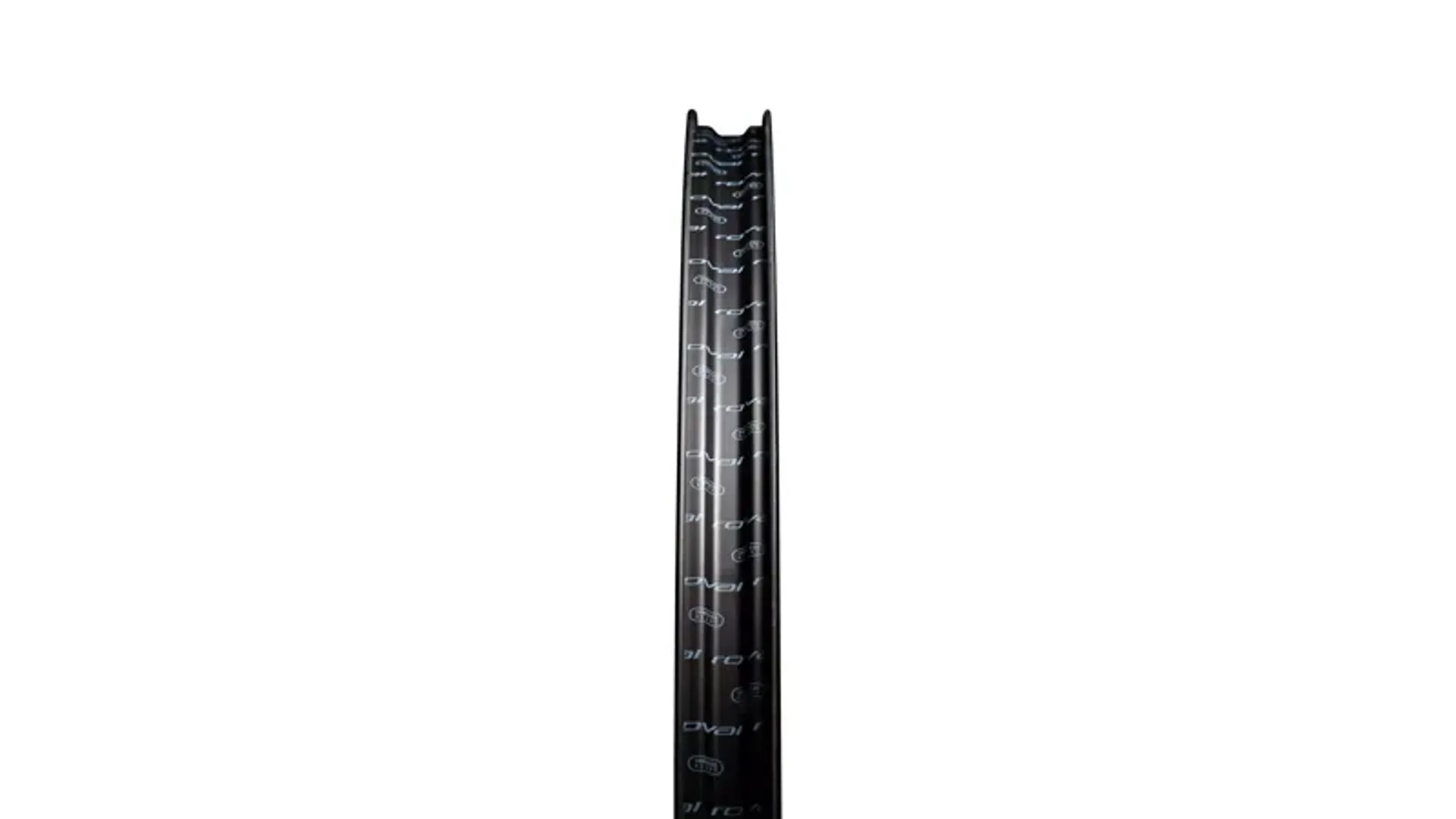

Rim construction
Carbon Clincher Hooked
-
Wheel size / ETRTO
622 21 (700c)
-
Hole count
Front: 21H, Rear: 24H
-
Tubeless compatibility
Yes
-
Insert compatibility
Yes
-
Brake compatibility
Disk (Centerlock)
-
Valve stem length
Roval Tubeless Vlave, Alloy 50mm
-

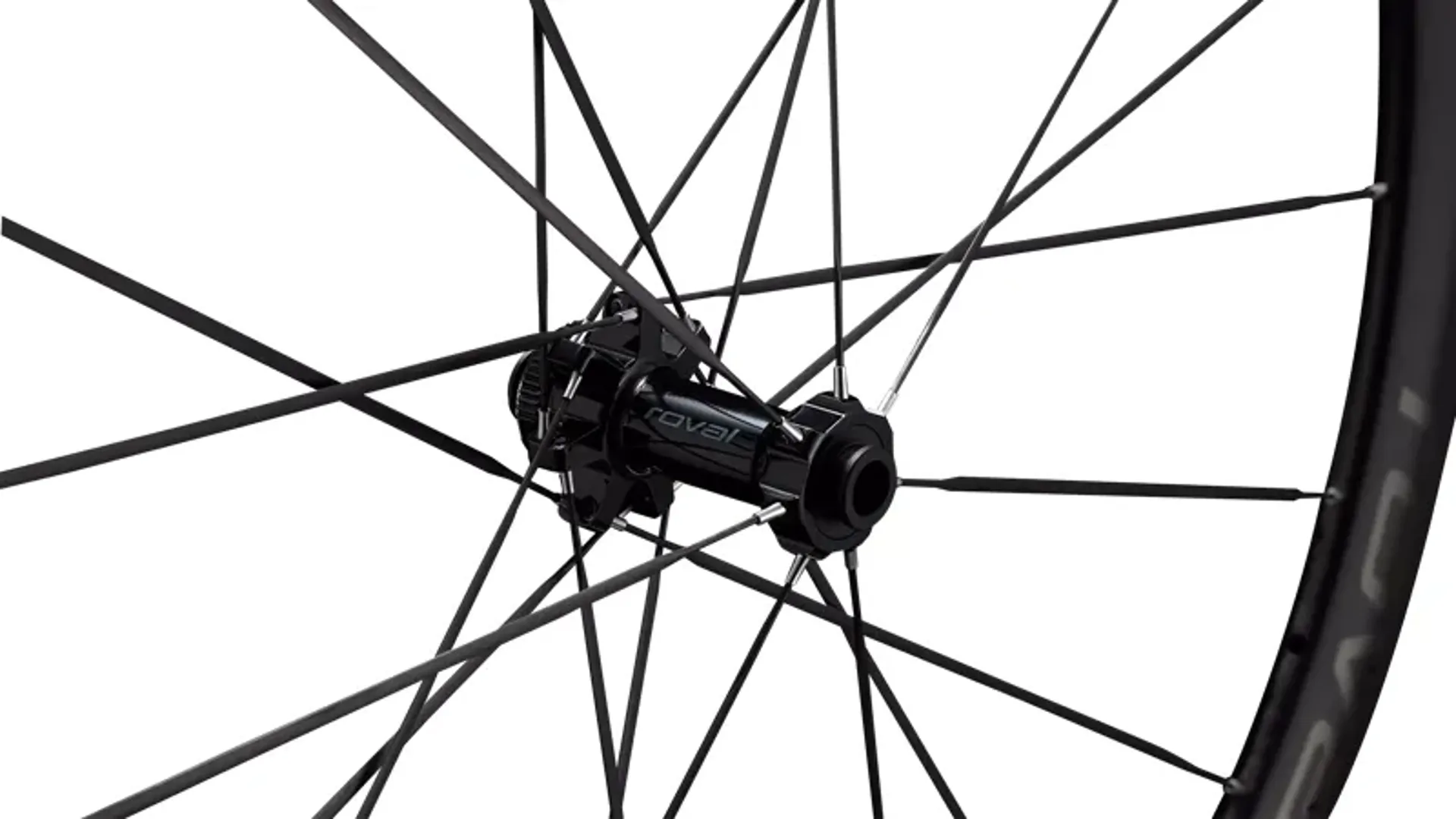

Front hub
Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF21-F)
-

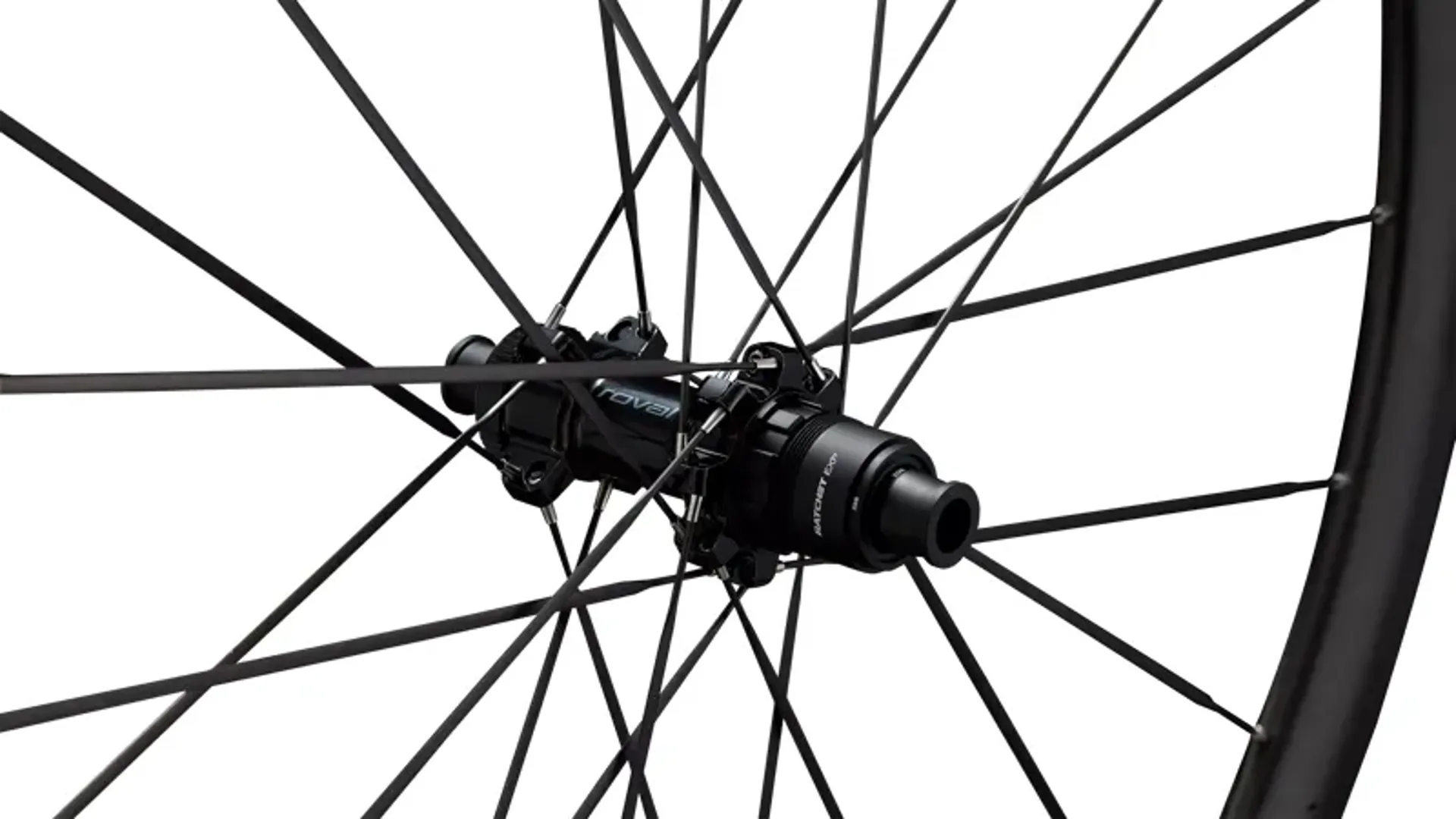

Rear hub
Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
-
Front hub bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
-
Rear hub bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)
-
Rear freehub body
DT Swiss Ratchet EXP (36T ): Sram XD-R
-
Front spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 21qty, (DS: 281mm, NDS: 294mm)
-
Rear spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 292mm, NDS: 288mm)
-
Front lacing pattern
Two-Cross / Radial (2:1), Not Tucked
-
Rear lacing pattern
One-Cross / Three-Cross (2:1), Not Tucked
-
Nipples
Arris MK4 Spoke Nipple Alloy, 6 mm
-
Approved tire widths
24mm-38mm
-
Max pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
-
Tire type
Clincher Tubeless and Clincher Tube Type
-
Tubeless tape width
25mm
-
Design tire
RapidAir TLR, 28mm
-
Front weight
518g (with valves and tape)
-
Rear weight
613g (with valves and tape)
-
Wheelset weight
1,131g (with valves and tape)
-
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
-
E-bike approved
No
-
Certifications
ISO 5775-2, UCI Approved
-
Weight limit
275 lbs. / 125 kg.
-
Assembly method
Hand Built
