DETAILS
Platform

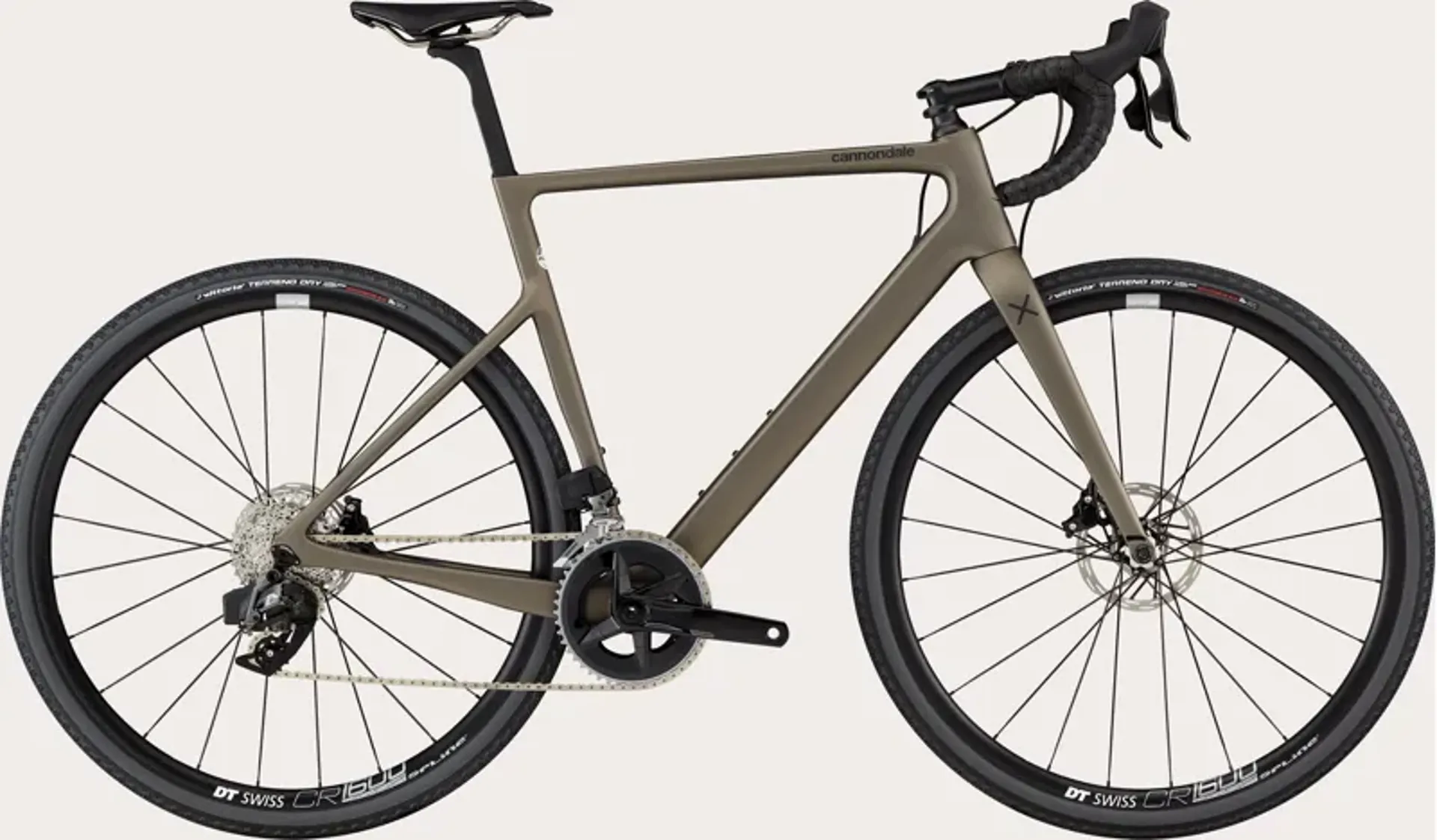

SuperSix EVO SE
Model Name
SuperSix EVO SE
Model Code
C17102U
FRAMESET
Frame
SuperSix EVO CX Carbon, internal cable routing w/ Switchplate, 12x5.6 inches Speed Release thru-axle, SAVE, PF30-83 Ai, flat mount disk, integrated seatpost binder
Fork
SuperSix EVO CX Carbon, SAVE, integrated crown race, 12x3.9 inches Speed Release thru-axle, flat mount disk, internal routing, 1-1/8" to 1-1/2", 2.2 inches offset
Headset
Integrated, 1-1/8" - 1.5"
DRIVETRAIN
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shifters
SRAM Rival eTap AXS HRD
Chain
SRAM Rival, 12-speed
Crank
SRAM Rival DUB X-Range, 46/33
Rear Cogs
SRAM Rival XG-1250, 12-speed 10-36
Bottom Bracket
SRAM DUB PF30A Road 3.3 inches, Cannondale Ai
BRAKES
Brakes
SRAM Rival hydraulic disk, 160/6.3 inches Paceline rotors
Brake Levers
SRAM Rival eTap AXS HRD
WHEELS
Rims
DT Swiss G540, 28h, 0.9 inch IW, tubeless ready
Spokes
Stainless Steel, 14g
Tire Size
40
Wheel Size
700c
Hubs
(F) Formula CL-712, 12x3.9 inches centerlock / (R) Formula RXC-400, 12x5.6 inches centerlock, Ai offset
Tires
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
Front Tire
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
Rear Tire
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
COMPONENTS
Handlebar
Cannondale 2, 6061 Alloy, Compact
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Grips
Cannondale Bar Tape, 3.5mm
Saddle
Prologo Dimension AGX, Tirox
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 13.0 inches, 0.0 inch offset (46cm), 0.6 inch offset (51-58cm)
